Description
LHZ Tall Vertical Radiator
Tall Radiators are designed to heat rooms where wall area is at a minimum, providing maximum heat in minimal space.
Manual Thermostat Model: the manual themostat is a simple dial on the side of the radiator with no timer function.
on/off mode
the dial is numbered 1 to 6, with each number representing 5℃
a red indicator light shows when the radiator is taking current
TDI Thermostat Control Option: the TDI thermostat is a digital thermostat inside the endplate of the radiator
24 hour, 7 day programmable timer
you can still operate the radiator manually if desired
the TDI thermostat is accurate to 0.1℃
DSM WiFi Control Option: control your radiator anytime, anywhere.
LHZ DSM Smart WiFi control box required with this option
mobile app control - compatible with both Apple and Android products
fully controllable for both time and temperature
home page menu displays the heating status and operational functions of your system.
power and temperature statistics menu enables you to monitor power consumption and temperatures at any time.
individual heater devices menu allows you to add, delete and set temperature at any time to provide you with full system control.
The temperature is sensed through a node at the bottom of the radiator, so it is not affected by the heating coming from the radiator
Easy to install: safe, clean and easy to operate.
Supplied with wall mounting brackets.
Tough powder coated finish over an anti rust treated steel body
No maintenance required, can be simply plugged in or hard wired - 1.5M cable supplied
Wholly designed and manufactured in Germany
12 Year warranty on the radiator and a 2 year warranty on the thermostat.

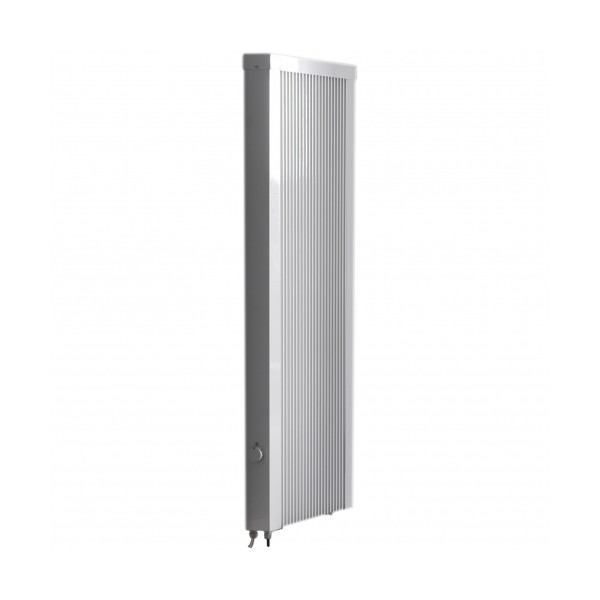

1200 Watt Radiator: Colour: White - Width: 380mm - Height: 1240mm - Depth: 70mm - Weight: 35kg
1800 Watt Radiator: Colour: White - Width: 550mm - Height: 1240mm - Depth: 70mm - Weight: 58kg
2200 Watt Radiator: Colour: White - Width: 680mm - Height: 1240mm - Depth: 70mm - Weight: 65kg
