Description

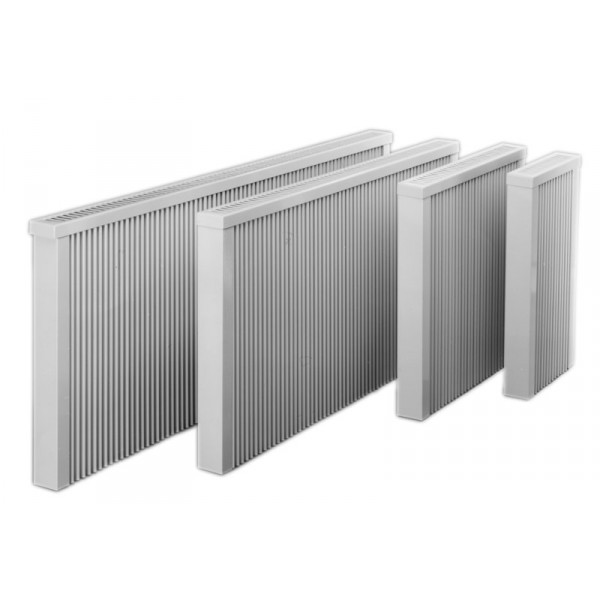

Standard Height Radiator
Manual Thermostat Model: the manual themostat is a simple dial on the side of the radiator with no timer function.
on/off mode
the dial is numbered 1 to 6, with each number representing 5℃
a red indicator light shows when the radiator is taking current
TDI Thermostat Control Option: the TDI thermostat is a digital thermostat inside the endplate of the radiator
24 hour, 7 day programmable timer
you can still operate the radiator manually if desired
the TDI thermostat is accurate to 0.1℃
DSM WiFi Control Option: control your radiator anytime, anywhere.
LHZ DSM Smart WiFi control box required with this option
mobile app control - compatible with both Apple and Android products
fully controllable for both time and temperature
home page menu displays the heating status and operational functions of your system.
power and temperature statistics menu enables you to monitor power consumption and temperatures at any time.
individual heater devices menu allows you to add, delete and set temperature at any time to provide you with full system control.
The temperature is sensed through a node at the bottom of the radiator, so it is not affected by the heating coming from the radiator
Easy to install: safe, clean and easy to operate.
Supplied with wall mounting brackets.
Tough powder coated finish over an anti rust treated steel body
No maintenance required, can be simply plugged in or hard wired - 1.5M cable supplied.
Castors or feet available as optional.
Wholly designed and manufactured in Germany
12 Year warranty on the radiator and a 2 year warranty on the thermostat.
600 Watt Radiator: Colour: White - Width: 380mm - Height: 630mm - Depth: 70mm - Weight: 22kg
1000 Watt Radiator: Colour: White - Width: 680mm - Height: 630mm - Depth: 70mm - Weight: 36kg
1400 Watt Radiator: Colour: White - Width: 850mm - Height: 630mm - Depth: 70mm - Weight: 45kg
1800 Watt Radiator: Colour: White - Width: 980mm - Height: 630mm - Depth: 70mm - Weight: 50kg
2400 Watt Radiator: Colour: White - Width: 1280mm - Height: 630mm - Depth: 70mm - Weight: 62kg
2800 Watt Radiator: Colour: White - Width: 1580mm - Height: 630mm - Depth: 70mm - Weight: 82kg
